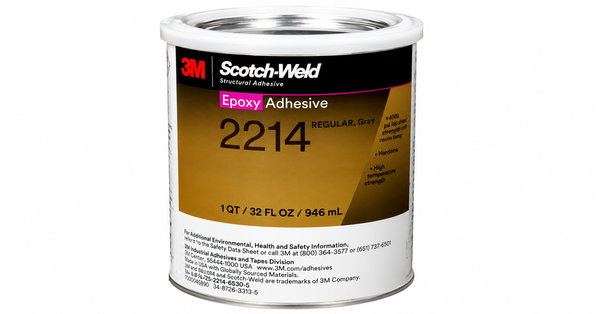

3M EC-2214
Harmonization Code : 3214.10.00 | Putty and other mastics | Resin cements, caulking compounds and other mastics
Main features
- Premixed One Part Processing
- Heat Cured Structural Bonding
- Application Specific Grade Selection
Product Description
3M Scotch-Weld Epoxy Adhesive EC-2214 is a one-part, 100% solids epoxy paste that heat cures at a 121 deg C bondline temperature for structural bonding of metals, fiberglass-reinforced plastic, polyester, phenolic materials, and other high-temperature plastics. The EC-2214 family includes Regular, Hi-Density, Hi-Temp, and Hi-Temp New Formula grades. Regular is aluminum filled for general-purpose bonds, Hi-Density is deaerated for dense void-free bondlines, and the Hi-Temp grades target higher-temperature strength. The exact grade must be selected before cure and performance values are applied.
Key features
- One Part Heat Cure System: The premixed paste removes a separate two-component mixing step.
- Metal And High Temperature Plastic Bonding: The epoxy family supports compatible metals and reinforced polymer substrates.
- Application Specific Grade Options: Regular, high-density, and high-temperature constructions address different bondline needs.
Applications
Heat-cured structural bonding of prepared metals, fiberglass-reinforced plastic, polyester, phenolic materials, and compatible high-temperature plastics.
